A bare concrete slab draws warmth out of your feet all winter, and a new vinyl plank or laminate floor laid straight on top puts only its own thickness between you and the cold. If your basement floor feels freezing, the real fix sits under the planks: a dimpled membrane, a raised panel, an insulated panel, or rigid foam with plywood. Each one adds a different amount of insulation and takes a different bite out of your headroom. Below we line those build-ups up side by side using manufacturer R-values and real thicknesses, then match them to floors from our vinyl plank collection and our laminate and engineered lines, so you can settle on a system before you settle on a colour.
Quick answer: what goes under the planks to warm them up
- Least height lost: a dimpled plastic membrane, rated R-0.68 by its manufacturer with 6.0 mm dimples, with laminate floating directly on it.
- A clear step up in warmth: raised OSB panels on a plastic dimple base, listed at R-1.4 and 0.75 in tall.
- More insulation for about an inch of height: panels with foam under the OSB (R-2.7) or panels made of foam alone (R-4.1).
- A nail-down hardwood floor: a plywood deck over rigid foam or sleepers, because nails need solid wood. Extruded polystyrene foam is rated about R-5 per inch by Natural Resources Canada.
- Floating SPC vinyl and laminate can go on any of these, as long as the panel maker lists your floor type.
Why a basement slab feels cold underfoot
Natural Resources Canada (NRCan) estimates that basements can account for about 25 percent of a home's total heat loss. Its retrofit guidance also notes that most of that heat leaves through the upper part of the foundation walls, which is why basement floor slabs are seldom insulated in the first place.
Two practical points follow. First, a chilly floor is sometimes partly a draft problem: NRCan names air leakage at the top of the foundation wall, around the sill area and rim joist, as a common weak spot. That is a separate job from the floor and worth checking first. Second, once drafts are dealt with, the chill that remains comes from the slab itself, and the way to reduce it is an insulating layer between the concrete and your planks.
Before any build-up goes down, the slab has to be dry enough for flooring. Our guide to moisture testing concrete in Toronto basements explains how to check, and the poly sheets, combination underlays and liquid coatings used on damp concrete are covered in our moisture barrier guide. This page stays on warmth and height.
The build-up options, compared side by side
The table lines up the common ways to raise a floor off a cold slab. R-values come from each manufacturer's own data, or from NRCan's insulation table for loose foam boards. A higher number means more resistance to heat flow. Height is what the system adds before your flooring goes on.
| Build-up | What it is | R-value | Height added | Floating SPC or laminate | Nail-down engineered |
|---|---|---|---|---|---|
| Floor straight on the slab | Planks with an attached pad or a separate underlay | Not published for our planks | None beyond the floor | Yes | No |
| Dimpled membrane | Plastic sheet laid dimples down on the concrete | R-0.68 | 6.0 mm (1/4 in) | Laminate floats directly on it | Needs a wood layer on top |
| Raised OSB panel | OSB squares with a moulded plastic base | R-1.4 | 0.75 in (1.9 cm) | Yes | Not into the OSB alone |
| Insulated OSB panel | OSB over a layer of EPS foam | R-2.7 | 1 in (2.5 cm) | Yes | Not into the OSB alone |
| Foam-topped panel | EPS foam panel with no wood layer | R-4.1 | 1 in (2.5 cm) | Yes, click vinyl 5mm or thicker | Not a nailing base |
| Rigid foam plus plywood | XPS or EPS boards under a plywood deck | R-5 per inch (XPS), R-4 per inch (EPS Type II) | Foam plus plywood | Yes | Yes, into the plywood |
Floating straight on the slab
This is the thinnest route and where most people start. A rigid SPC plank with an attached pad, such as the Greige Oak plank further down, adds just its own 10mm. It softens the hard feel of concrete and is listed as waterproof, but none of our listings publish an R-value for the pad, so we won't promise how much warmer it will feel. If the floor is painful in January, plan on one of the build-ups below.
Dimpled membrane
A high-density polyethylene membrane is rolled out dimples down so air can move over the concrete. One Canadian manufacturer's specification sheet rates its membrane at R-0.68 on its own, with a dimple height of 1/4 in, and says laminate may be installed directly over it as a floating floor. For other coverings, the same sheet describes an OSB load-spreading sheet on top, which adds height and labour. Its insulation figure is the smallest in the table.
Raised OSB panels
These are small square panels of oriented strand board with a dimpled plastic base, locked together with tongue-and-groove edges over the slab. One manufacturer's panel of this type lists R-1.4 and a height of 0.75 in, about double the membrane's rating for roughly three times the height. Its maker lists laminate, engineered hardwood, vinyl and SPC among the floors it supports. The same maker cautions that nailing into the OSB layer alone may not provide adequate holding power, and points installers back to the flooring manufacturer's instructions.
Insulated and foam-topped panels
The same panel format also comes with a layer of expanded polystyrene (EPS) foam under the OSB, rated R-2.7 at 1 in tall. A foam-topped version drops the OSB altogether and is rated R-4.1 at the same height, but its maker limits it to floating floors: laminate, engineered hardwood, luxury vinyl 5mm or thicker, and stone plastic composite. Both SPC planks we feature below clear that thickness line.
Rigid foam boards under plywood, or plywood on sleepers
The site-built route lays rigid foam boards on the slab and fastens a plywood deck over them. NRCan's insulation table gives extruded polystyrene (XPS) about R-5 per inch and Type II expanded polystyrene about R-4 per inch, so an inch of XPS out-rates every panel in the table. The trade-off is height and carpentry: you add the foam plus the plywood, and the deck must be planned so it stays flat and firm. Plywood fastened over wood sleepers is another version of the same idea. Either way you finish with a solid wood surface, which is what a nail-down hardwood floor needs.
How much headroom each build-up takes under an 8 ft ceiling
Height is the hidden cost of a warmer floor. Take a basement with an 8 ft finished ceiling, or 96 in, as an example. The table adds each system to a real plank thickness from our catalogue and shows the ceiling height left over. Underlay for laminate and plywood for site-built decks vary by job, so their thickness is left out.
| Build-up with floor | Stack height | In inches | Ceiling left from 96 in |
|---|---|---|---|
| Greige Oak 10mm SPC on the slab | 10 mm | 0.39 in | 95.61 in |
| Dimpled membrane plus Egger 8mm laminate | 14 mm | 0.55 in | 95.45 in |
| Raised OSB panel plus Driftwood Mist 8mm SPC | 27 mm | 1.06 in | 94.94 in |
| Foam-topped panel plus Driftwood Mist 8mm SPC | 33 mm | 1.30 in | 94.70 in |
| Insulated OSB panel plus Greige Oak 10mm SPC | 35 mm | 1.38 in | 94.62 in |
| Slate 19mm engineered on a plywood deck | 19 mm plus the deck | 0.75 in plus the deck | Depends on the deck |
The ceiling loss is small; the edges of the room are where it shows. The bottom stair step gets shorter by the full stack height, door bottoms may need trimming, and any floor drain or cleanout cover has to be cut through and kept reachable. Measure those spots before you choose, because a 35 mm stack matters more at the stairs than at the ceiling.
Which of our floors can sit on each system
All four floors below are in stock. The table shows box price, coverage and the price per square foot, worked out as box price divided by square feet per box.
| Floor | Type and install | Thickness and width | Box price / coverage | Per sq ft | Works over |
|---|---|---|---|---|---|
| Driftwood Mist SPC vinyl | SPC vinyl, click-lock | 8mm, 20mil wear layer | $59.00 / 16.55 sq ft | $3.56 | Slab or any panel type |
| Greige Oak SPC vinyl with EVA pad | SPC vinyl, click-lock | 10mm, 5.9" wide, 20mil wear layer | $59.00 / 11.82 sq ft | $4.99 | Slab or any panel type |
| Egger EM7206 laminate | Laminate, click-lock | 8mm, 7.60" wide, AC3 | $40.48 / 21.42 sq ft | $1.89 | Slab, membrane or any panel type, with underlay |
| Slate European oak engineered | Engineered hardwood, nail-down | 19mm (3/4"), 6.5" wide, 2mm oak top layer | $95.71 / 20.24 sq ft | $4.73 | Plywood deck |
Prices checked October 6, 2026. Box prices and coverage come from our current catalogue.
SPC vinyl: the easiest match for any build-up

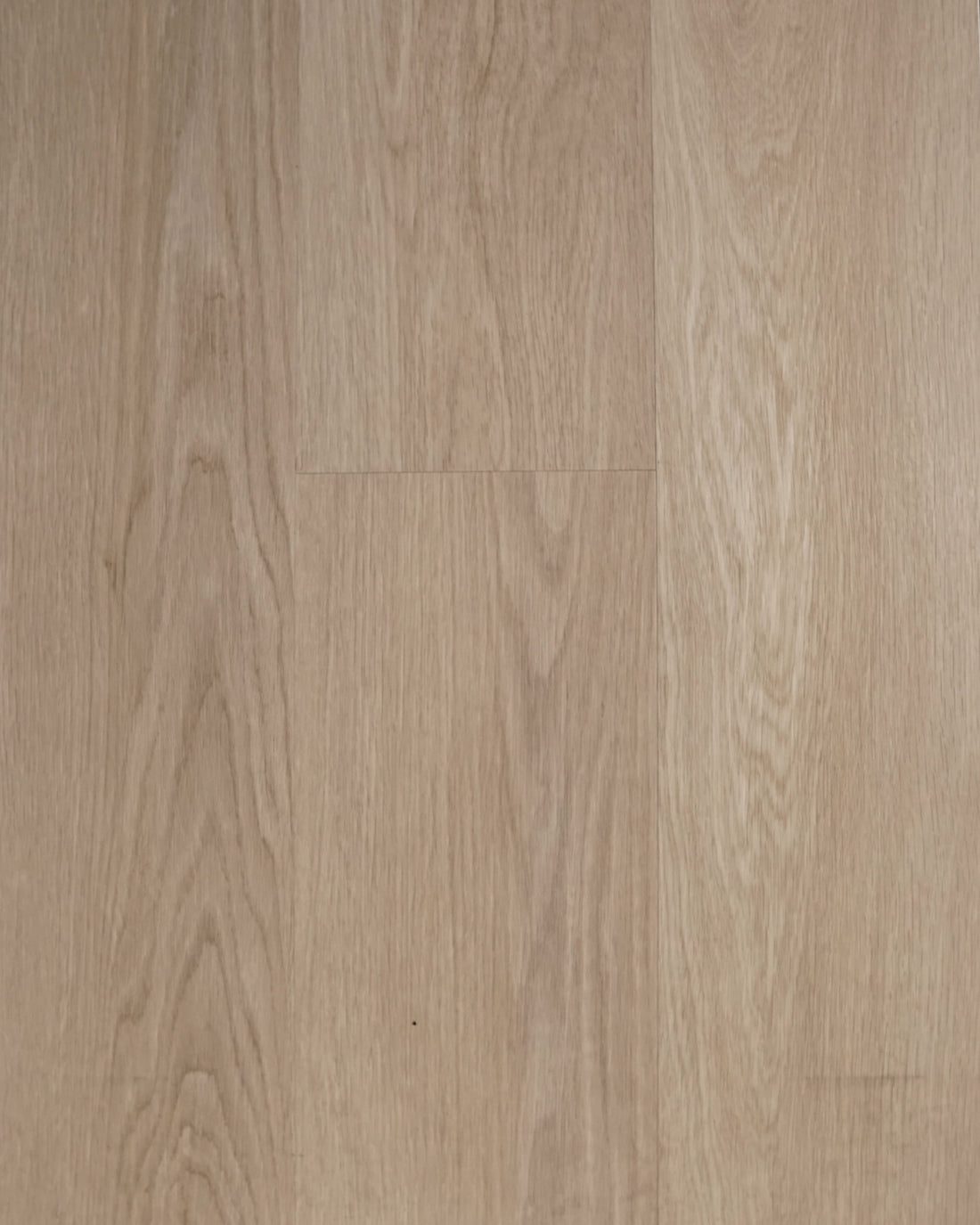

Driftwood Mist is an 8mm SPC plank with a 20mil wear layer and click-lock edges, listed as waterproof, at $3.56 per sq ft. Because it floats, it can go on bare concrete, raised OSB panels or a foam-topped panel without being fastened down.
Greige Oak is the thicker choice at 10mm and comes with an EVA pad attached, so it needs no separate underlay. It costs $4.99 per sq ft, $1.43 more than Driftwood Mist, and its planks are 5.9" wide. On a cold slab the extra 2mm of plank adds some cushion underfoot, but it is no substitute for a panel if the concrete is truly freezing.
Laminate: pair it with a membrane or panel
Egger EM7206 is an 8mm AC3 laminate, 7.60" wide, at $1.89 per sq ft, the least expensive per square foot of the four floors here. It suits a dimpled membrane well, since laminate is the floor the membrane maker names for floating directly on its sheet. Our quotes add a separate underlay for laminate. Unlike the two SPC planks, its listing does not describe it as waterproof, so keeping it up off the concrete on a membrane or panel makes extra sense in a basement. More styles are in our laminate collection.
Nail-down engineered: plan a plywood deck
The Slate European oak plank is 19mm (3/4") engineered hardwood with a 2mm oak top layer, 6.5" wide, sold as a nail-down floor at $4.73 per sq ft. Nails need solid wood to hold, so on a slab this floor belongs on a plywood deck laid over rigid foam or sleepers. If you want real wood underfoot in a basement, budget for the deck and the height it adds, or choose a floating floor instead.
Picking a system: simple rules
- If the floor is cool rather than icy and every bit of height counts, float an SPC plank with an attached pad right on the slab, after a moisture test.
- If you are laying laminate and want a thermal break for very little height, use a dimpled membrane.
- If the floor is freezing and your stairs and doors can absorb about an inch, go with raised panels, and choose the foam-backed kind if you want more insulation.
- If you want the most insulation and are installing a floating floor, look at a foam-topped panel or rigid foam under plywood.
- If your heart is set on nail-down hardwood from our engineered hardwood collection, plan a plywood deck from the start.
- If water has ever come through the slab, fix that first. OSB panels that stay wet should be replaced, according to their maker.
For the wider picture of floor types and budgets below grade, see our complete guide to Toronto basements and our basement renovation picks for 2026. Condo units sit on concrete too, and our condo flooring guide explains what changes when the slab is in a high-rise.
Cold basement floor FAQ
What goes under vinyl plank to make a cold basement floor warmer?
An insulating layer between plank and concrete. Ranked by published R-value, the options run from a dimpled membrane at R-0.68 through OSB panels at R-1.4 and R-2.7 to an all-foam panel at R-4.1. A pad attached to the plank helps comfort, but no R-value is published for ours.
Which option adds the most insulation for the least height?
Among the ready-made panels, the all-foam version gives R-4.1 in 1 in, compared with R-1.4 in 0.75 in for the plain OSB panel. Loose XPS boards rate about R-5 per inch, but a plywood deck then goes on top, so the total stack is taller.
Is a raised panel system waterproof?
The panels are built to let damp concrete breathe and to cope with small leaks, not floods. Their maker says OSB that has been wet for an extended period should be replaced, since swollen OSB does not return to its original thickness. Our two SPC planks are listed as waterproof; the panels under them are a separate matter.
Does a foil or bubble underlay warm up a basement floor?
Do not count on it. NRCan says all of Canada is considered a cold climate, so reflective bubble foil products do not perform as promoted here. A foam or panel layer with a published R-value is a more reliable choice.
